Powered Retracting-Steps Kit for Deere Combines

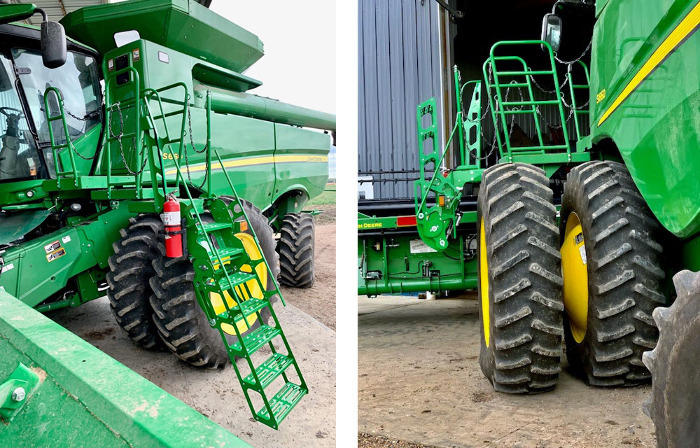

Left pic of Powered Retracting-Steps extended on John Deere combine. Rt pic of steps retracted on the combine.

Designed to make cab entry/exit easier and safer, a Powered Retracting-Steps Kit for Deere Combines replaces the straight ladder on selected models (see below). Each of the seven steps has a rise of 8.5 inches, with the first one being 8 to 11 inches from ground, depending on tire size and model. Running off the combine's 12-volt power system, the unit operates as follows: to access, one climbs the steps and flips the actuator switch on the top left handrail; once in the cab, the steps will automatically stop in the up position, ensuring clearance for headers, stalks and mud; to descend, the process is simply reversed, (The suppliers claim that the kit takes just 2-3 hours to install since the bolt-on unit uses the machine's factory mounting holes.)

Estimated Cost Cost range: $4,000

Limitations Limitations Addressed by Product: Lower extremity


SourceTNC Fabricating, LLC
19351 326th Lane
New Prague, MN, 56071
Websitewww.tncfab.com
Emailsales@combinesteps.com
Phone612-756-3290

SourceSloan Express
P.O. Box 80 (120 North Business 51)
Assumption, IL, 62510
Websitewww.sloanex.com
Emailagparts@sloanex.com
Phone800-934-9777
Fax217-226-3351
Last updated: Jun 03, 2025
